Sand Dredging Cutter Dredger

Weifang Jin Meng Dredger Co.,Ltd. located in Qingzhou, Weifang City, is a manufacturer and supplier in China, and we have been specialized in sand dredging cutter dredger manufacturing since 2000. Our river dredging cutter suction dredgers have a good price advantage and cover most of the African, Middle East, South East Asian and South American and American markets. We look forward to becoming your long-term partner in China.

Model:JMD550

Send Inquiry

Product Description

Weifang Jin Meng Sand Dredging Cutter Dredger

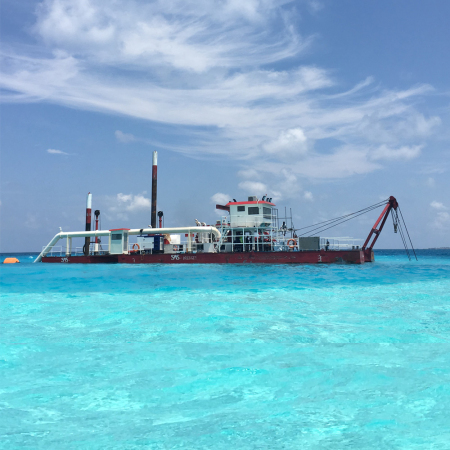

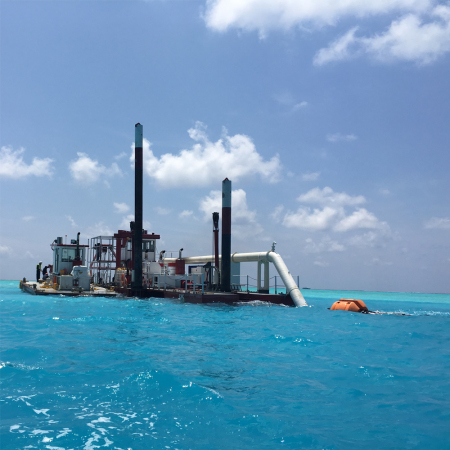

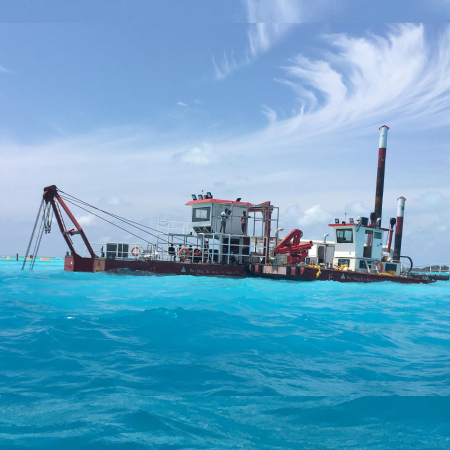

The sand dredging cutter dredger we produce is self-propelled or non self-propelled,portable sand dredging cutter dredger. The hull uses dismantle and box-like structure, Its dismantle type can be assembly at working place easily and be transported by road, railway and container accordingly, convenient in installation and working place moving from one to another. The power system can be designed to electric system or diesel engine driving system according to customers’ requirements.

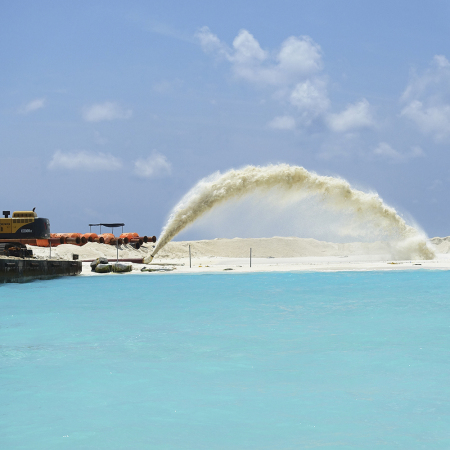

Equipment on the sand dredging cutter dredger are as bellows: traversing device, cutter ladder lifting device, spuds and deck crane. The working process is as following: the cutter head cut the sand and mud underwater to mixture of slurry, then through dredging pump to the pipeline on sand dredging cutter dredger; at the end the slurry will be discharged by pipeline on land to the required place.



Weifang Jin Meng Sand Dredging Cutter Dredger Technical Specifications

JMD550 Sand dredging cutter dredger

 Shijiazhuang Pump

Dia. Discharge pipe

550mm



Head

65m



Max. Working capacity

900m3/h



Discharge distance

3000m

Dredging depth

14m



Diesel Engine

1306KW

Cummins

Hydraulic Auxiliary engine

336KW

Cummins

Emergency Generator

20KW

WEICHAI

Total power

1662KW

Oil Consumption

250L/H

Hull Dismension

LOA*W*D

42m×7.5m×2.0m

Hydraulic system

Hydraulic pump

VICKERS America(Joint-venture)



Hydraulic Motor

Italy SAI technology(Joint-venture)



Valves

REXROTH Germany(Joint-venture)



Operating system

SIEMENS PLC(Imported from Germany)



Ladder winch

Tension

120KN



Swing winch

Tension

120KN



Cutter Head

Crown-like

Φ1800mm





Power

200KW


Weifang Jin Meng Sand Dredging Cutter Dredger Feature and Application

This Weifang Jin Meng Sand Dredging Cutter Dredger is equipped with horizontal shifting devices, cutter ladder lifting devices, spud devices, deck crane and so on. It can also be equipped with anchoring poles and trolley devices. Generally, it has functions on dredging, conveying and discharging of mud or sand. It can produce certain amount of vacuum by the centrifugal pump.


Weifang Jin Meng Sand Dredging Cutter Dredger Details

Design

Our sand dredging cutter dredger is designed by senior engineer, who have specialized in shipbuilding and dredging work for many years, to guarantee they are well-designed and practical.


Cummins Engine

The sand dredging cutter dredger is equipped with world famous powerful Cummins engine, which are famous for its durability, lower oil consumption, standardized accessories and easy maintenance.


Hydraulic system

The most important parts of sand dredging cutter dredger and wheel bucket dredger. The hydraulic system requirements are very high and strict; it’s the main artery of the entire dredger. Lateral traction winches, lifting winch and cutter head of the dredgers are driven by hydraulic motors.

An integral hydraulic system includes hydraulic oil tanks, hydraulic pump, hydraulic valve manifold, solenoid valve, hydraulic pipes, hydraulic components, electrical actuator and so on.


Detachable Structure

The sand dredging cutter dredger is detachable, so it is easy to transport when delivering or moving from one working site to another.


Shijiazhuang Pump

flow passage components use High wear resistant alloy Cr27 to prolonged the pump service life, pump shaft seal use packing seal which is easy to maintain , and anti-friction bearings are from Japanese brand NSK.


Cutter head

For one cutter head, there are 5 blade, 8 teeth equipped on one blade. There is material High chromium. for easy-wearing proof.

Cutter head is driven by hydraulic motor; cutter bearing has lubrication seal-in units.


Weifang Jin Meng Sand Dredging Cutter Dredger Other Service


Skilled workers & ex-work testing

Every sand dredging cutter dredger is built by skilled workers and inspected strictly to assure the high quality and durability. Each finished dredger will be tested in our testing center to make sure it works smoothly when delivering to customers.


Assembly & Staff Training

Our experienced installers will arrive at the construction site to guide, teach and training your staff to debug and operate the dredger until they can operate skillfully by themselves.
